Sensors & Gateways
for Cold Chain Monitoring

الميزات الرئيسية

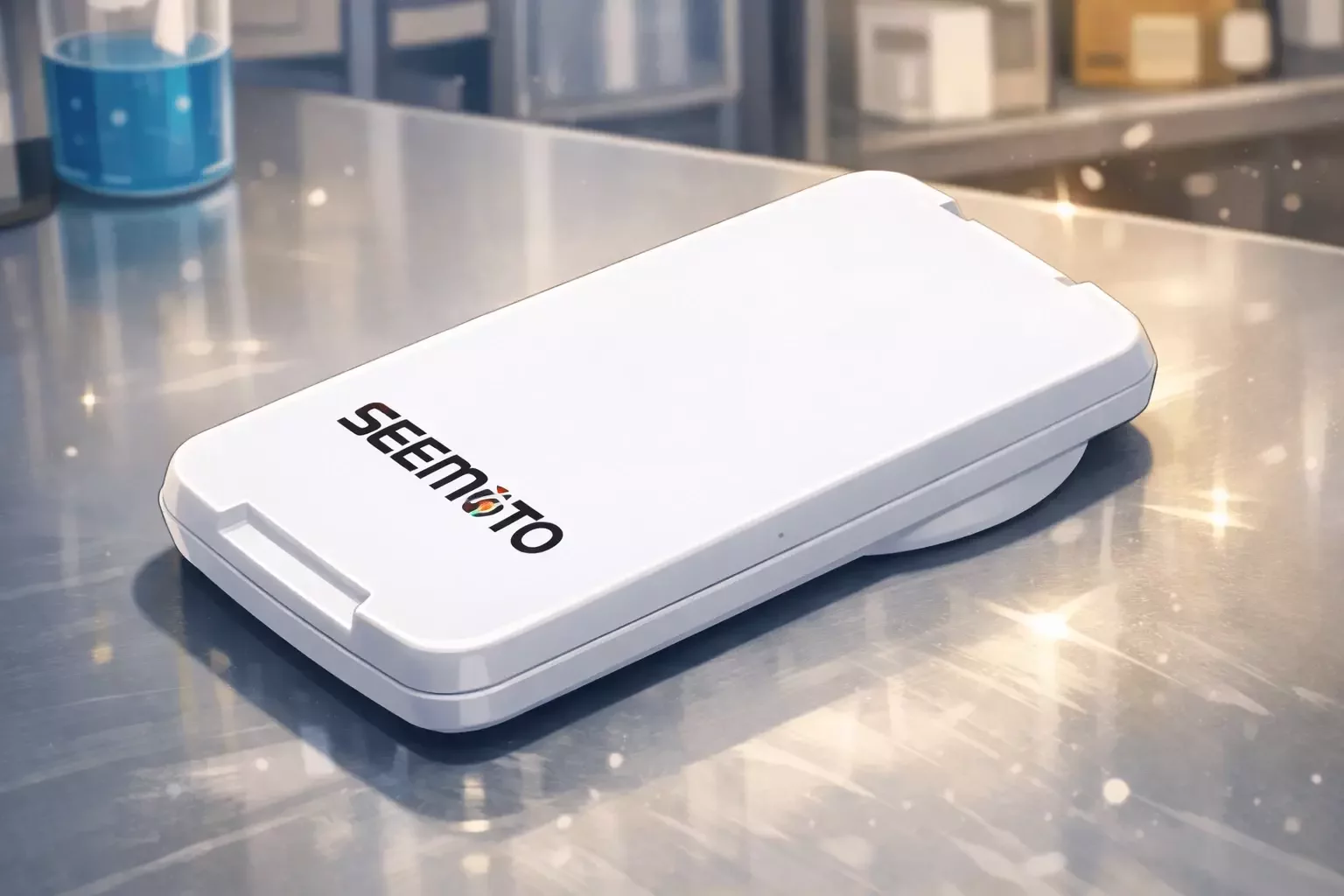

• Audit-ready temperature evidence: automated logging and structured records
• Fast deployment: snap-on mounting, no wiring
• Low operational overhead: up to 5 years continuous use
• Rugged reliability: IP68 enclosure for demanding environments
• Internal memory: stores up to 600,000 readings
• Secure 2.4 GHz encrypted wireless communication

Commercial Use

• غرف التبريد والمجمدات والمخازن المبردة ومناطق إنتاج الأغذية
• Pharma and healthcare storage and transport (GDP/GMP)
• البيئات الصناعية الساخنة/الباردة (نطاق درجات حرارة واسع)

Specifications

• Temperature range: −40 °C to +85 °C
• Resolution: 0.1 °C, accuracy: ±0.5 °C
• Wireless range: up to 200–400 m line-of-sight
• Battery life: up to 5 years continuous use
• Logging interval: 5-minute measurement intervals
• Compliance: EN 12830, EN 13485, GDP, GMP

الميزات الرئيسية

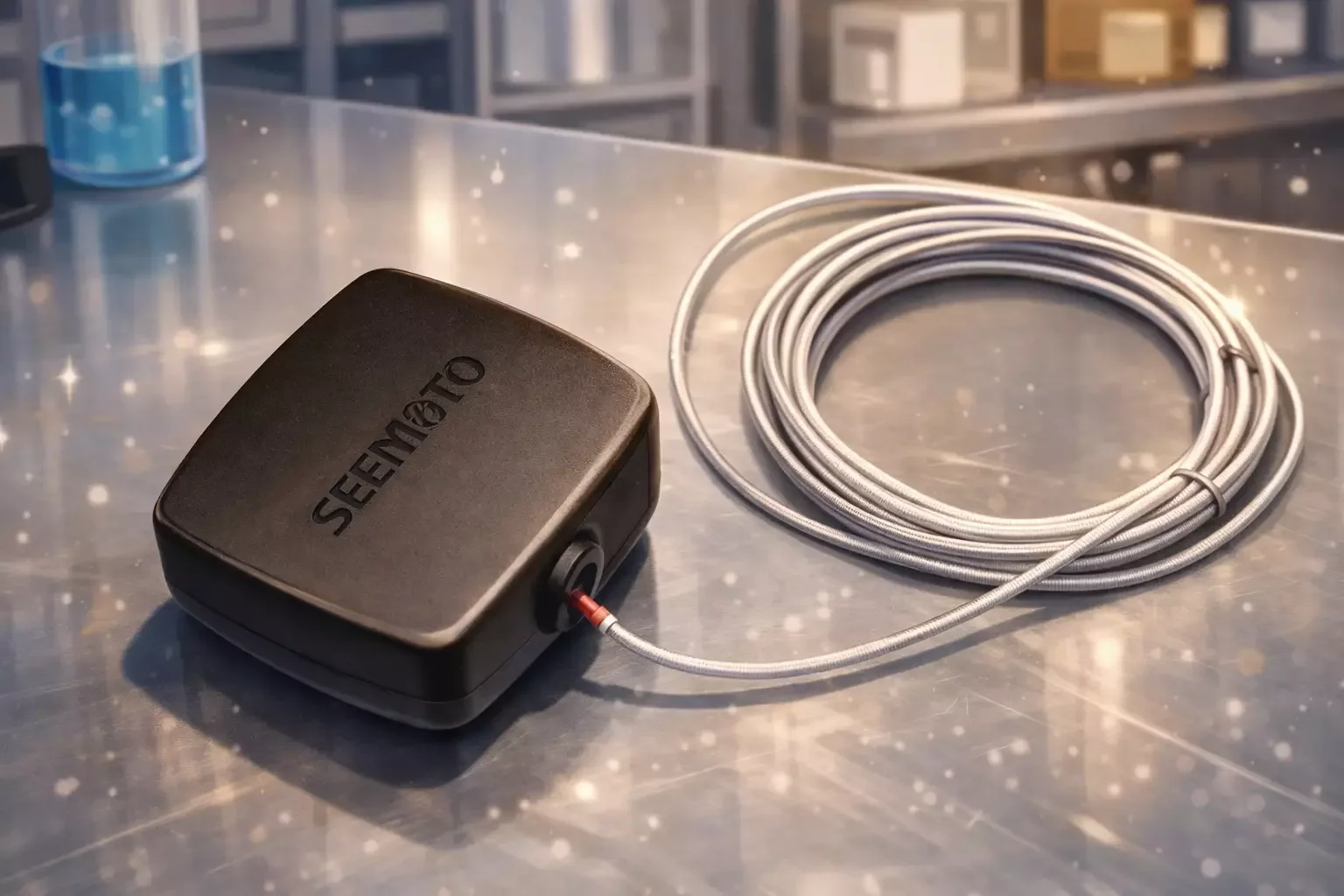

• Extended measurement capability: external PT1000 probe for precise product-level temperature
• Audit-ready accuracy: reliable evidence for GMP, GDP, and validation use cases
• Flexible installation: custom cable lengths per application
• Ultra-low temperature support: suitable for ULT and cryogenic applications
• Long-term reliability: industrial-grade design for continuous monitoring
• Onboard memory for offline buffering

Commercial Use

• مجمدات ذات درجة حرارة منخفضة للغاية (−80 درجة مئوية وما دون)
• Biobanks and clinical trial material storage
• غرف الاستقرار ودراسات التحقق
• العمليات الصناعية التي تتطلب قياسًا باستخدام مجسات

Specifications

• Temperature range: down to −196 °C (probe dependent)
• Sensor type: external PT1000 stainless steel probe
• Wireless: secure 2.4 GHz encrypted communication
• Wireless range: up to 200–400 m line-of-sight
• Logging interval: configurable (e.g. 5-minute intervals)
• الامتثال: EN 12830، GDP GMP، إدارة الغذاء والدواء الأمريكية 21 CFR الجزء 11

الميزات الرئيسية

• Combined temperature & humidity evidence: automated, continuous logging of both parameters
• Early risk detection: identify condensation, moisture buildup, and environmental instability
• Fast deployment: snap-on mounting, no wiring or IT changes required
• Low operational overhead: long battery life with maintenance-free operation
• Reliable performance: industrial-grade IP64 enclosure
• Memory: stores up to ~600,000 combined readings

Commercial Use

• Pharmaceutical and healthcare storage (GDP/GMP)
• Food production and HACCP-critical storage areas
• Warehouses and logistics with seasonal humidity fluctuations
• Laboratories, archives, and controlled environments

Specifications

• Temperature range: −40 °C to +85 °C, accuracy: ±0.5 °C
• Humidity range: 0–100 %RH, accuracy: ±3 %RH
• Wireless: secure 2.4 GHz, range 200–400 m
• Battery life: up to 5 years continuous use
• Logging interval: 5-minute measurement intervals
• Compliance: EN 12830, GDP, GMP, HACCP

الميزات الرئيسية

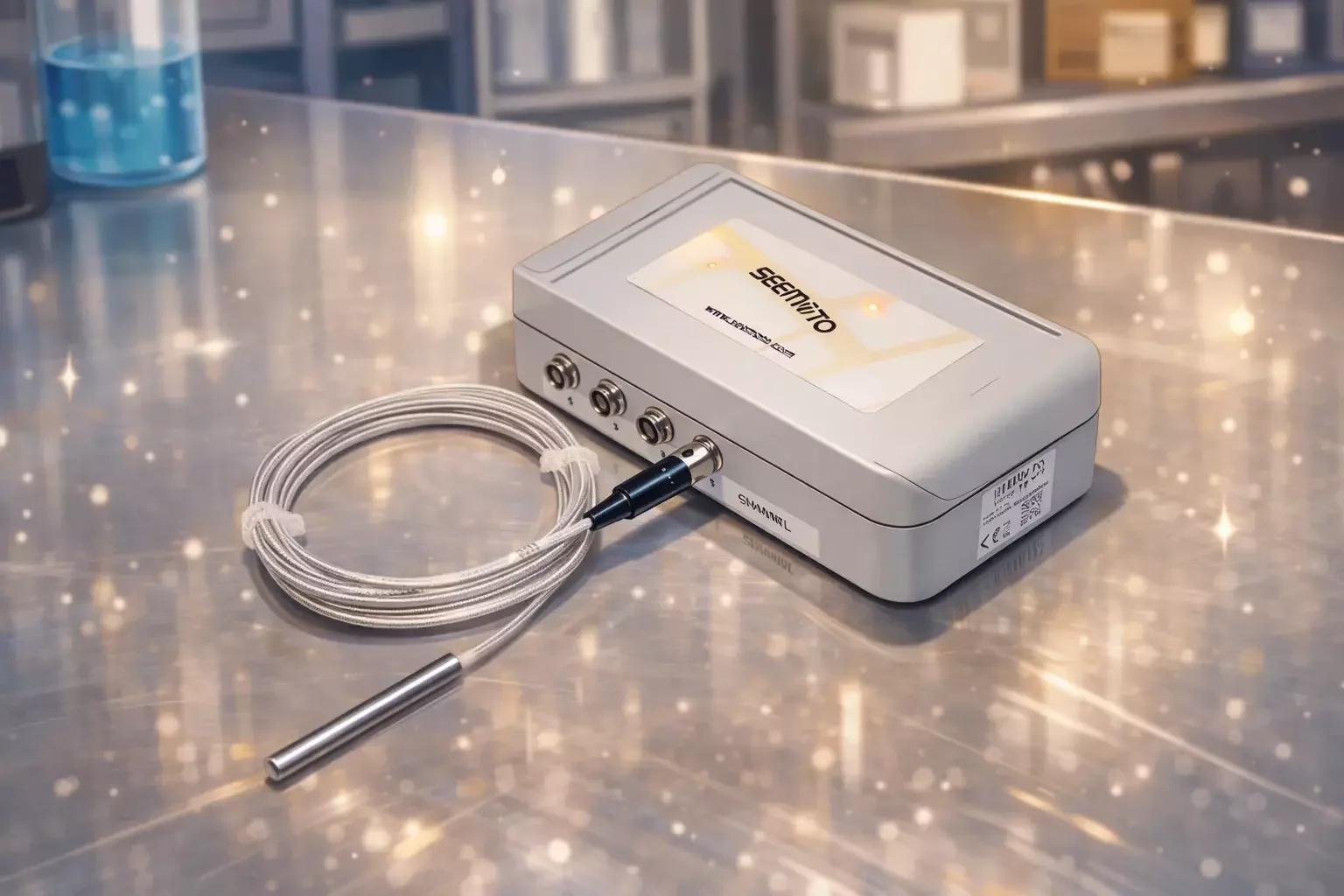

• Multi-point temperature visibility: up to four measurement points per device
• Wide temperature coverage: −196 °C to +150 °C (probe-dependent)
• Audit-ready data: automatic logging with structured, compliant records
• Flexible deployment: external probes enable precise placement at critical control points
• Reliable wireless operation: encrypted communication with Seemoto gateways
• Replaceable battery: no charging required, minimum 1-year life

Commercial Use

• Ultra-low freezers, cryogenic storage, and LN₂ tanks
• مستودعات الأدوية وغرف التبريد متعددة المناطق
• نقل الطعام مع حجرات متعددة
• Validation and qualification studies (IQ/OQ/PQ)

Specifications

• Temperature range: −196 °C to +150 °C (probe-dependent)
• Accuracy: ±1.0 °C, resolution: 0.5 °C
• Probes: up to 4 external calibrated PT-1000
• Wireless: secure 2.4 GHz, range 200–400 m
• Memory: stores up to 15 days of data with 4 probes
• Compliance: EN 12830, EN 13485, EN 61010-1, RoHS

الميزات الرئيسية

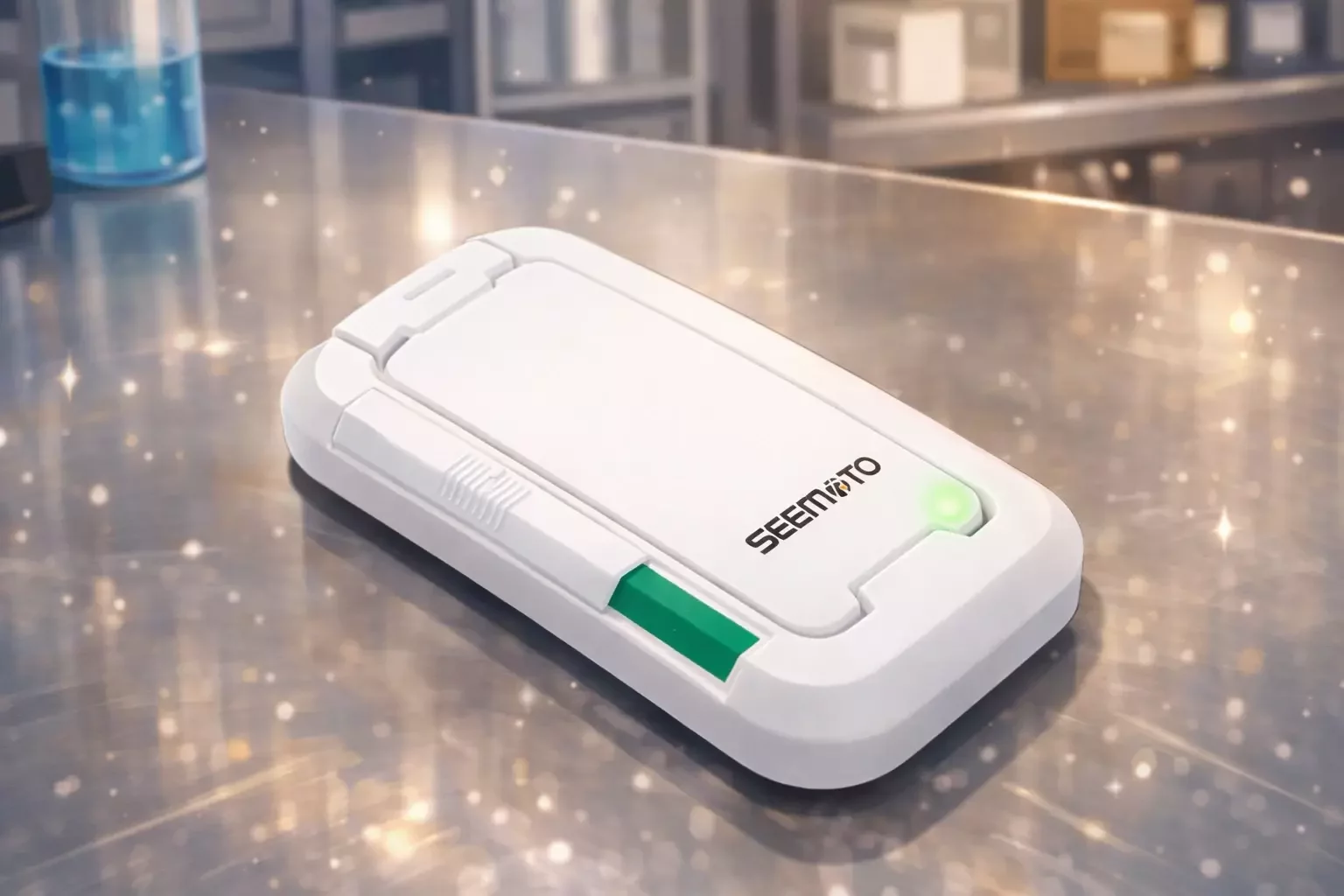

• Automated cold chain verification: reliable temperature evidence for audits and inspections
• Immediate visual status: green/red LED shows in-range or excursion at a glance
• Flexible data upload: real-time or delayed synchronization via gateway
• Ultra-long battery life: 8–12 years (application dependent)
• Rugged and waterproof: hermetically sealed IP68 enclosure
• Internal memory: 13,700+ records (up to ~37 days)

Commercial Use

• Food logistics: fridges, cold rooms, freezers, and transport boxes
• Pharmaceutical and healthcare: hospital fridges and sample transport
• Retail, HoReCa, and food service HACCP verification
• الحاويات الصناعية المعزولة ومناطق التخزين البارد

Specifications

• Temperature range: −40 °C to +85 °C
• Resolution: 0.1 °C, accuracy: ±0.3 °C
• Logging mode: real-time or offline with delayed upload
• Wireless: secure 2.4 GHz, range 200–400 m
• Battery life: 8–12 years
• Compliance: EN 12830, EN 13485, EN 61010-1, RoHS

الميزات الرئيسية

• Instant visual verification: built-in display shows live temperature and alarm status
• Audit-ready temperature evidence: automated logging with structured records
• Fully automatic operation: no manual start, no user interaction required
• Low operational overhead: 3–5 years battery life, maintenance-free
• Reliable performance: IP68, secure wireless communication
• Memory: supports up to 600,000 readings

Commercial Use

• نقل وتخزين سلسلة التبريد للأغذية الطازجة والمجمدة
• المنتجات الصيدلانية والرعاية الصحية التي تتطلب مراقبة درجة الحرارة بشكل مرئي
• توصيل الأطعمة الساخنة التي تتطلب تتبع مستوى الحرارة
• المستودعات والمركبات وبيئات التسليم التي تتطلب فحوصات بصرية سريعة

Specifications

• Temperature range (sensor): −40 °C to +85 °C
• Temperature range (display): 0 °C to +40 °C
• Resolution: 0.1 °C, accuracy: ±0.5 °C
• Wireless: secure 2.4 GHz, range 200–400 m
• Battery life: 3–5 years continuous operation
• Compliance: EN 12830, EN 13485, EN 61010-1, RoHS

الميزات الرئيسية

• Independent connectivity (GSM/SIM): sends data to Seemoto Cloud without customer IT
• Reliable data routing: designed for stable communication in building environments
• Remote control: supports configuration, diagnostics, and software updates
• Low operational overhead: maintenance-free operation with durable design
• Future-proof platform: compatible with current and future Seemoto sensors

Commercial Use

• Warehouses, cold rooms, freezers, and refrigerated storage
• Multi-site operations: retail chains, logistics hubs
• Remote monitoring where IT access is limited
• Property integration: buildings, warehouses, retail shops

Specifications

• Connectivity: GSM/GPRS/EDGE (850/900/1800/1900)
• Power: 100–240 V AC, 50/60 Hz (via AC adapter)
• Operating temperature: −40 °C to +85 °C
• Size: 105 × 65 × 17 mm, weight: 73 g
• Security: encrypted data transfer
• Compliance: EN 12830, EN 13485, EN 61010-1, RoHS, RED

الميزات الرئيسية

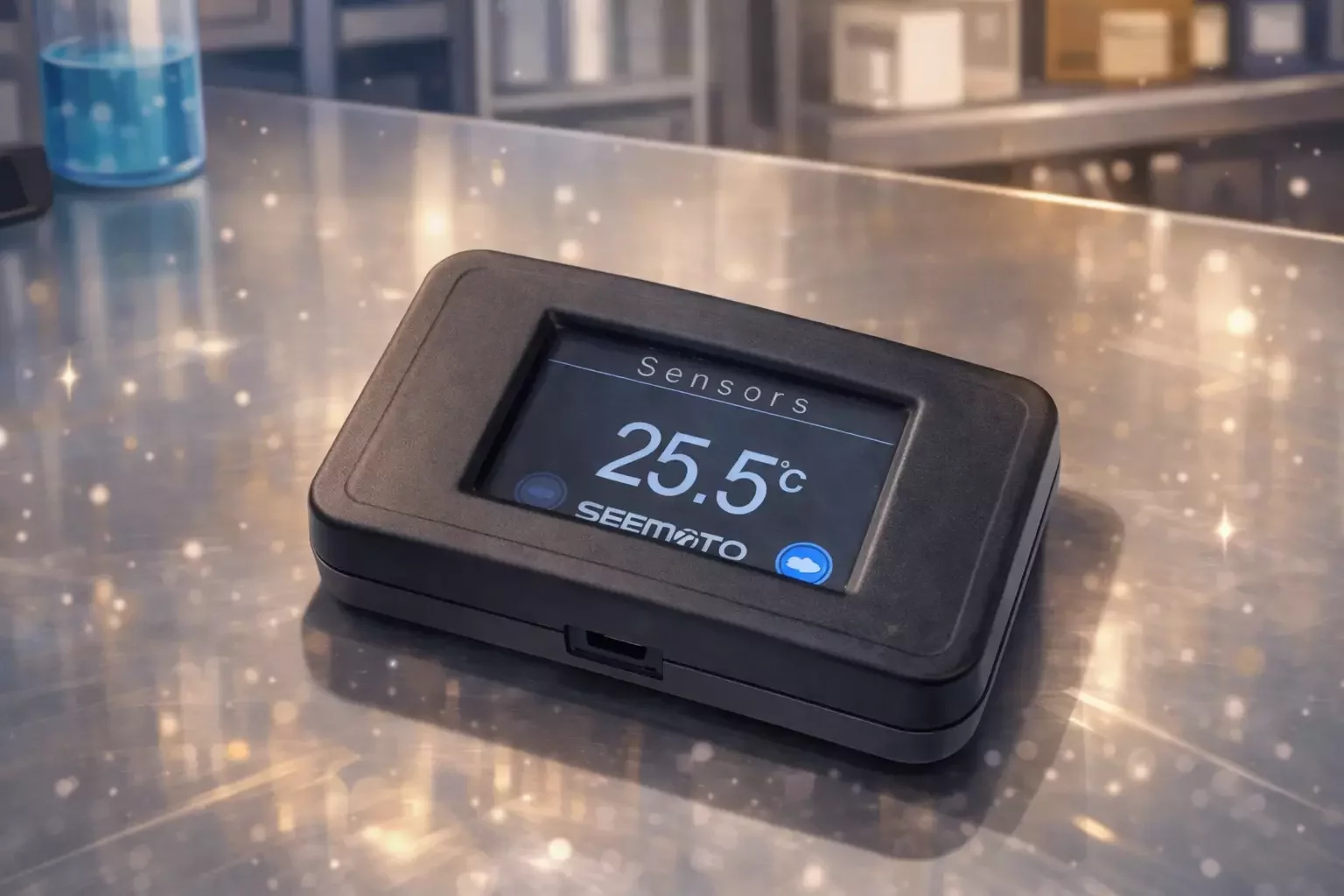

• Instant local visibility: built-in display shows live sensor values and gateway status
• Independent connectivity (GSM/SIM): operates without local IT networks
• Flexible power options: suitable for fixed installations and vehicle-based use
• Reliable data routing: secure transmission from sensors to Seemoto Cloud
• Low maintenance: robust, maintenance-free design for continuous operation

Commercial Use

• Cold rooms, freezers, pharma storage, food production areas
• Vehicle and fleet monitoring: trucks, trailers, mobile cold chain
• Warehouses and retail sites: on-site visibility without dashboard access
• Remote or temporary installations needing local status feedback

Specifications

• Integrated display: real-time sensor data and gateway status
• Connectivity: GSM/GPRS/EDGE (850/900/1800/1900)
• Power: 5–31 V DC or 100–240 V AC (via adapter)
• Operating temperature: −40 °C to +85 °C
• Size: 105 × 65 × 17 mm, weight: 73 g
• Compliance: EN 12830, EN 13485, EN 61010-1, RoHS, RED

الميزات الرئيسية

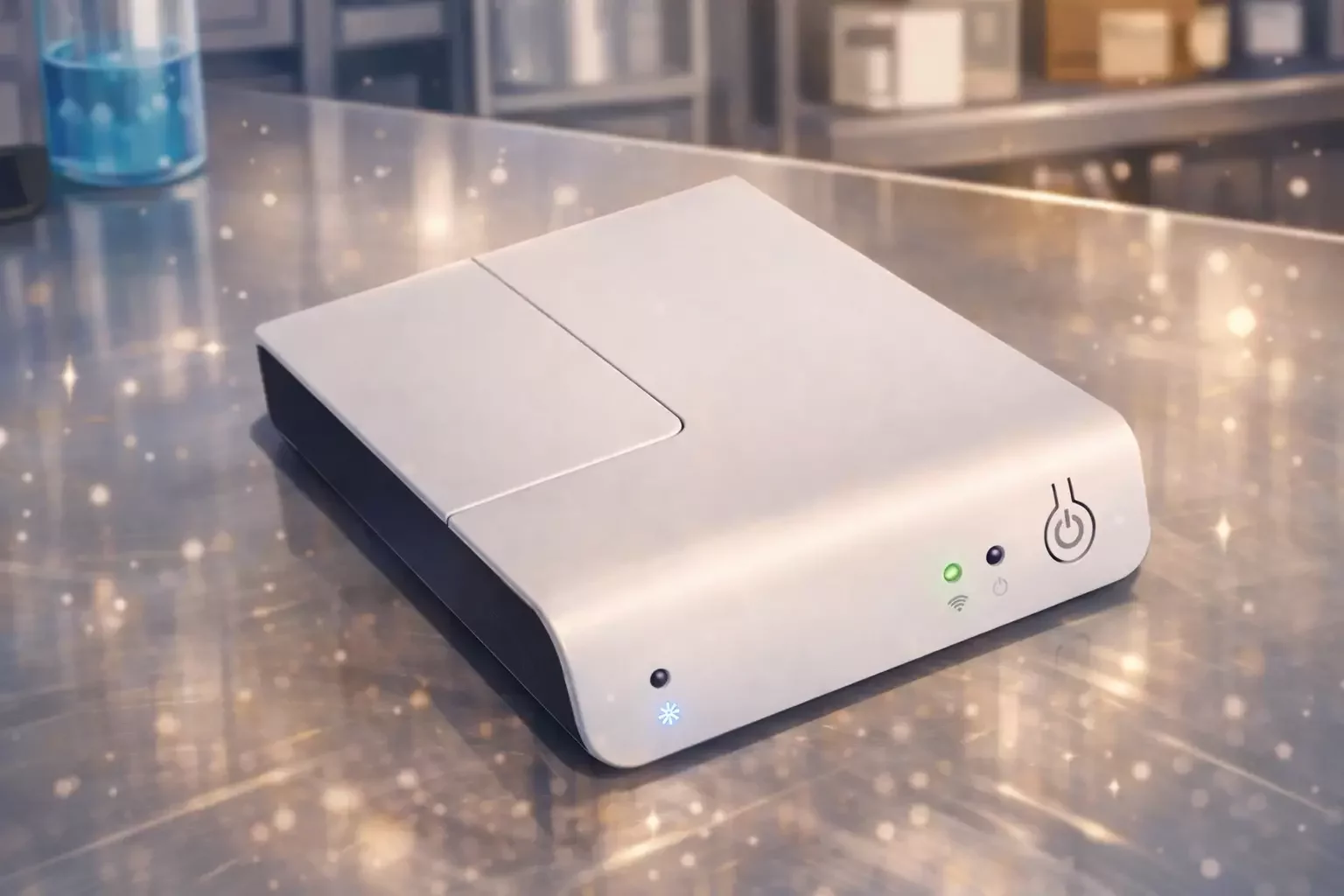

• Ethernet and WiFi connectivity: leverages existing network infrastructure
• Reliable data collection: stable, low-latency communication for sensor networks
• Centralized data routing: collects from multiple sensor zones simultaneously
• Remote management: supports configuration and diagnostics
• Compatible with all Seemoto sensor types for scalable expansion

Commercial Use

• Warehouses, cold rooms, and laboratories with Ethernet/WiFi
• Healthcare and pharma facilities: hospitals, pharmacies, cleanrooms
• Industrial sites: production areas and controlled environments
• Multi-location monitoring with centralized data collection

Specifications

• Connectivity: Ethernet and/or WiFi
• Power: mains-powered (adapter included)
• Operating temperature: −40 °C to +85 °C
• Security: encrypted wireless communication
• Compatible with all Seemoto sensors
• Compliance: EN 12830, EN 13485, EN 61010-1, RoHS, RED
