Seemoto Sensors
Wireless, battery-powered IoT devices that measure temperature, humidity, and other environmental conditions. Each sensor is easy to install, maintenance-free, and compliant with global cold chain regulations.
TS – Temperature Sensor
High-accuracy, IP68 temperature monitoring for cold chain, pharma, and industrial environments. Snap-on mounting with no wiring required.
Key Features
- Audit-ready temperature evidence: automated logging and structured records
- Fast deployment: snap-on mounting, no wiring
- Low operational overhead: up to 5 years continuous use
- Rugged reliability: IP68 enclosure for demanding environments
- Internal memory: stores up to 600,000 readings
- Secure 2.4 GHz encrypted wireless communication
Commercial Use
- Cold rooms, freezers, refrigerated storage, and food production areas
- Pharma and healthcare storage and transport (GDP/GMP)
- Industrial hot/cold environments (wide temperature range)
Specifications
- Temperature range: −40 °C to +85 °C
- Resolution: 0.1 °C, accuracy: ±0.5 °C
- Wireless range: up to 200–400 m line-of-sight
- Battery life: up to 5 years continuous use
- Logging interval: 5-minute measurement intervals
- Compliance: EN 12830, EN 13485, GDP, GMP

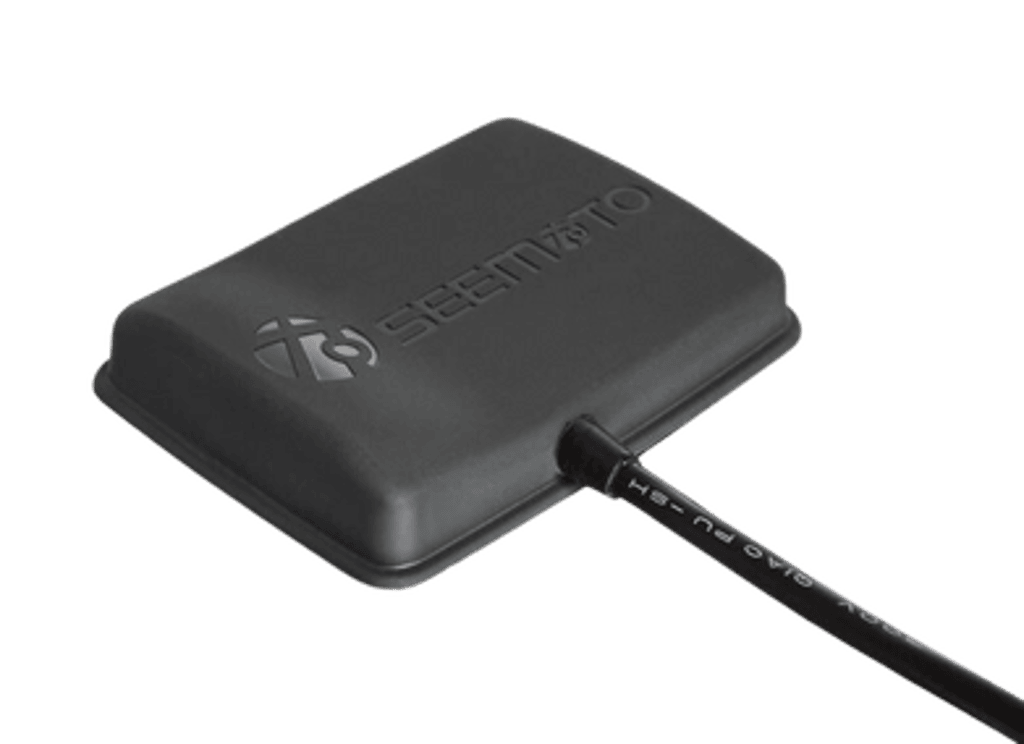

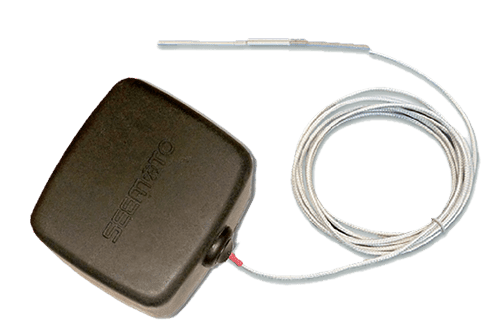

TS-PT – External PT1000 Probe
High-precision temperature monitoring for ultra-low, critical, and hard-to-reach measurement points in regulated environments.
Key Features
- Extended measurement capability: external PT1000 probe for precise product-level temperature
- Audit-ready accuracy: reliable evidence for GMP, GDP, and validation use cases
- Flexible installation: custom cable lengths per application
- Ultra-low temperature support: suitable for ULT and cryogenic applications
- Long-term reliability: industrial-grade design for continuous monitoring
- Onboard memory for offline buffering
Commercial Use
- Ultra-low temperature freezers (−80 °C and below)
- Biobanks and clinical trial material storage
- Stability chambers and validation studies
- Industrial processes requiring probe-based measurement
Specifications
- Temperature range: down to −196 °C (probe dependent)
- Sensor type: external PT1000 stainless steel probe
- Wireless: secure 2.4 GHz encrypted communication
- Wireless range: up to 200–400 m line-of-sight
- Logging interval: configurable (e.g. 5-minute intervals)
- Compliance: EN 12830, GDP, GMP, FDA 21 CFR Part 11

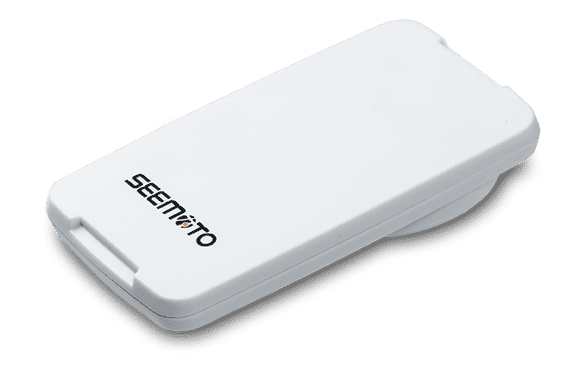

THS – Temperature & Humidity Sensor
Dual-parameter monitoring for temperature- and humidity-sensitive environments. Continuous logging with structured, audit-ready records.
Key Features
- Combined temperature & humidity evidence: automated, continuous logging of both parameters
- Early risk detection: identify condensation, moisture buildup, and environmental instability
- Fast deployment: snap-on mounting, no wiring or IT changes required
- Low operational overhead: long battery life with maintenance-free operation
- Reliable performance: industrial-grade IP64 enclosure
- Memory: stores up to ~600,000 combined readings
Commercial Use
- Pharmaceutical and healthcare storage (GDP/GMP)
- Food production and HACCP-critical storage areas
- Warehouses and logistics with seasonal humidity fluctuations
- Laboratories, archives, and controlled environments
Specifications
- Temperature range: −40 °C to +85 °C, accuracy: ±0.5 °C
- Humidity range: 0–100 %RH, accuracy: ±3 %RH
- Wireless: secure 2.4 GHz, range 200–400 m
- Battery life: up to 5 years continuous use
- Logging interval: 5-minute measurement intervals
- Compliance: EN 12830, GDP, GMP, HACCP

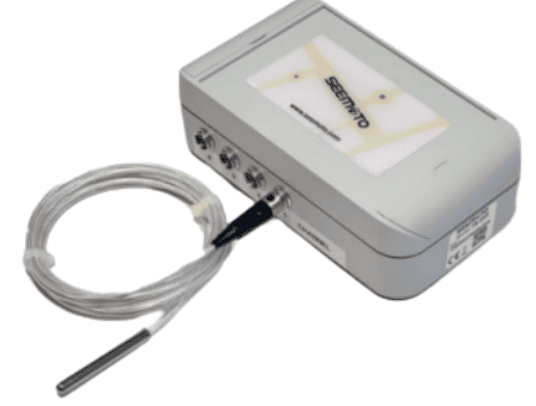

TS-4PT – 4-Channel External Probe
Multi-point temperature monitoring for complex cold chain, pharma, and industrial applications. Monitor up to four locations simultaneously.
Key Features
- Multi-point temperature visibility: up to four measurement points per device
- Wide temperature coverage: −196 °C to +150 °C (probe-dependent)
- Audit-ready data: automatic logging with structured, compliant records
- Flexible deployment: external probes enable precise placement at critical control points
- Reliable wireless operation: encrypted communication with Seemoto gateways
- Replaceable battery: no charging required, minimum 1-year life
Commercial Use
- Ultra-low freezers, cryogenic storage, and LN₂ tanks
- Pharmaceutical warehouses and multi-zone cold rooms
- Food transportation with multiple compartments
- Validation and qualification studies (IQ/OQ/PQ)
Specifications
- Temperature range: −196 °C to +150 °C (probe-dependent)
- Accuracy: ±1.0 °C, resolution: 0.5 °C
- Probes: up to 4 external calibrated PT-1000
- Wireless: secure 2.4 GHz, range 200–400 m
- Memory: stores up to 15 days of data with 4 probes
- Compliance: EN 12830, EN 13485, EN 61010-1, RoHS

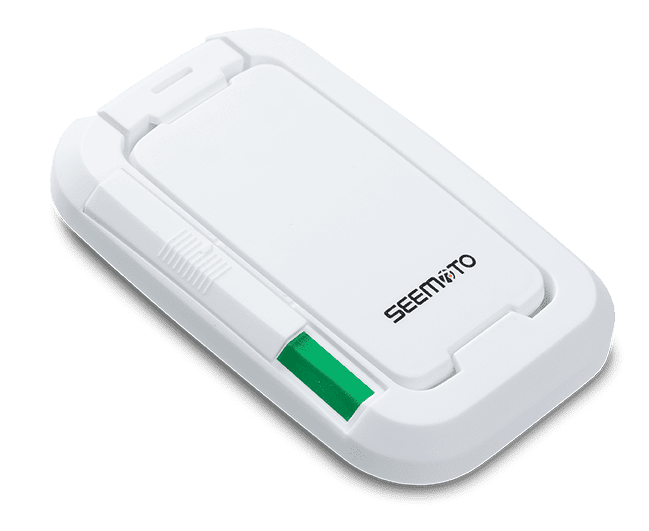

TS-Logger – Temperature Data Logger
Compact, low-power temperature logging sensor for cost-efficient cold chain verification and audit-ready compliance.
Key Features
- Automated cold chain verification: reliable temperature evidence for audits and inspections
- Immediate visual status: green/red LED shows in-range or excursion at a glance
- Flexible data upload: real-time or delayed synchronization via gateway
- Ultra-long battery life: 8–12 years (application dependent)
- Rugged and waterproof: hermetically sealed IP68 enclosure
- Internal memory: 13,700+ records (up to ~37 days)
Commercial Use
- Food logistics: fridges, cold rooms, freezers, and transport boxes
- Pharmaceutical and healthcare: hospital fridges and sample transport
- Retail, HoReCa, and food service HACCP verification
- Industrial insulated containers and cold storage areas
Specifications
- Temperature range: −40 °C to +85 °C
- Resolution: 0.1 °C, accuracy: ±0.3 °C
- Logging mode: real-time or offline with delayed upload
- Wireless: secure 2.4 GHz, range 200–400 m
- Battery life: 8–12 years
- Compliance: EN 12830, EN 13485, EN 61010-1, RoHS

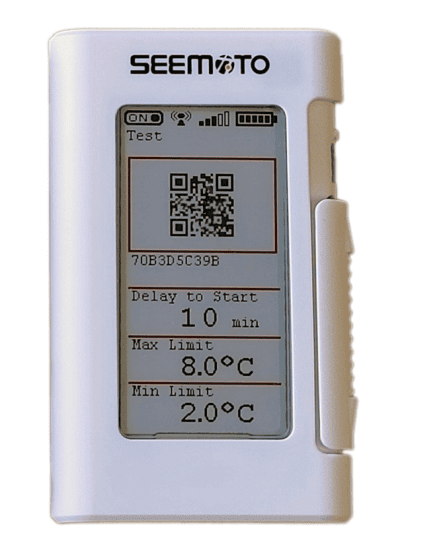

TDS – Temperature Display Sensor
Wireless temperature monitoring with a built-in display for immediate on-site visibility. Fully automatic operation with no manual start.
Key Features
- Instant visual verification: built-in display shows live temperature and alarm status
- Audit-ready temperature evidence: automated logging with structured records
- Fully automatic operation: no manual start, no user interaction required
- Low operational overhead: 3–5 years battery life, maintenance-free
- Reliable performance: IP68, secure wireless communication
- Memory: supports up to 600,000 readings
Commercial Use
- Cold chain transport and storage for fresh and frozen food
- Pharmaceutical and healthcare products requiring visible temperature control
- Warm food delivery where heat level tracking is required
- Warehouses, vehicles, and delivery environments needing quick visual checks
Specifications
- Temperature range (sensor): −40 °C to +85 °C
- Temperature range (display): 0 °C to +40 °C
- Resolution: 0.1 °C, accuracy: ±0.5 °C
- Wireless: secure 2.4 GHz, range 200–400 m
- Battery life: 3–5 years continuous operation
- Compliance: EN 12830, EN 13485, EN 61010-1, RoHS
Seemoto Gateways
Gateways collect data from all nearby sensors and transmit it securely to the Seemoto Cloud. Choose the type that matches your installation: wall-mounted, display, or Ethernet.

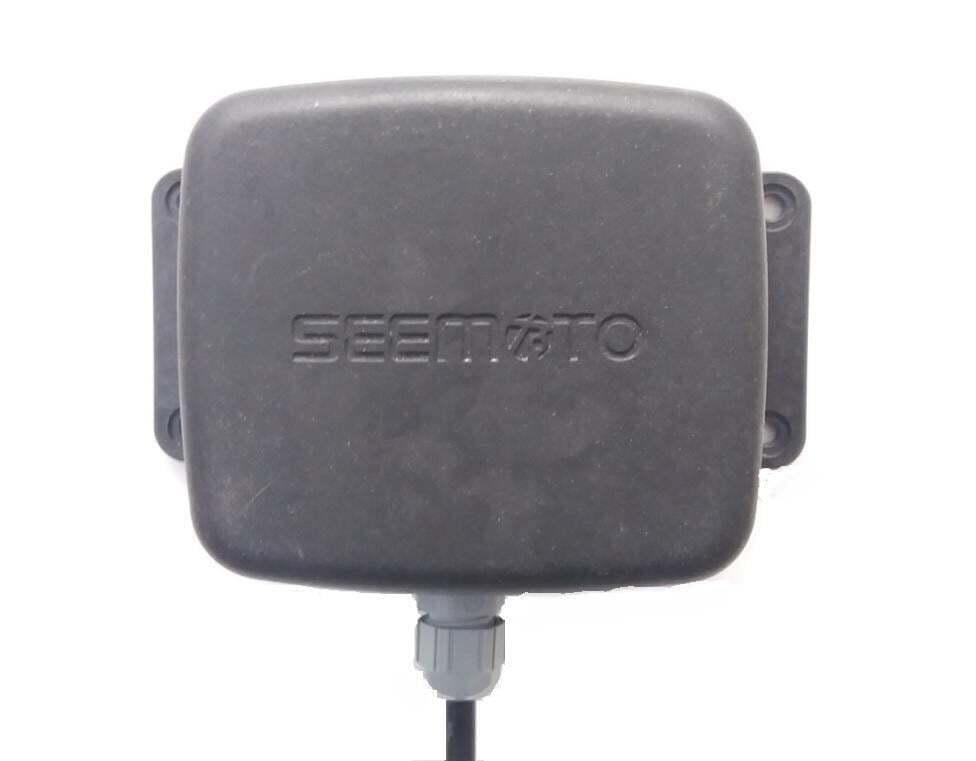

WGW – Warehouse Gateway
Reliable GSM gateway for Seemoto sensor networks. Operates independently without relying on customer IT networks.
Key Features
- Independent connectivity (GSM/SIM): sends data to Seemoto Cloud without customer IT
- Reliable data routing: designed for stable communication in building environments
- Remote control: supports configuration, diagnostics, and software updates
- Low operational overhead: maintenance-free operation with durable design
- Future-proof platform: compatible with current and future Seemoto sensors
Commercial Use
- Warehouses, cold rooms, freezers, and refrigerated storage
- Multi-site operations: retail chains, logistics hubs
- Remote monitoring where IT access is limited
- Property integration: buildings, warehouses, retail shops
Specifications
- Connectivity: GSM/GPRS/EDGE (850/900/1800/1900)
- Power: 100–240 V AC, 50/60 Hz (via AC adapter)
- Operating temperature: −40 °C to +85 °C
- Size: 105 × 65 × 17 mm, weight: 73 g
- Security: encrypted data transfer
- Compliance: EN 12830, EN 13485, EN 61010-1, RoHS, RED

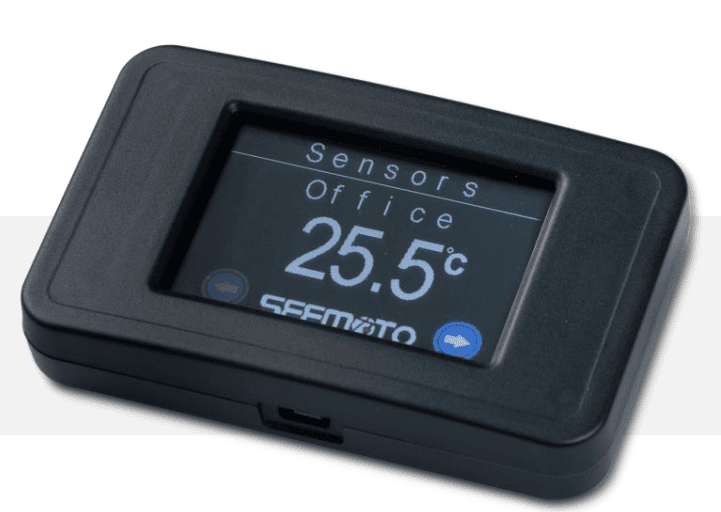

DGW – Display Gateway
Gateway with integrated display for real-time visibility of sensor data in fixed and mobile environments.
Key Features
- Instant local visibility: built-in display shows live sensor values and gateway status
- Independent connectivity (GSM/SIM): operates without local IT networks
- Flexible power options: suitable for fixed installations and vehicle-based use
- Reliable data routing: secure transmission from sensors to Seemoto Cloud
- Low maintenance: robust, maintenance-free design for continuous operation
Commercial Use
- Cold rooms, freezers, pharma storage, food production areas
- Vehicle and fleet monitoring: trucks, trailers, mobile cold chain
- Warehouses and retail sites: on-site visibility without dashboard access
- Remote or temporary installations needing local status feedback
Specifications
- Integrated display: real-time sensor data and gateway status
- Connectivity: GSM/GPRS/EDGE (850/900/1800/1900)
- Power: 5–31 V DC or 100–240 V AC (via adapter)
- Operating temperature: −40 °C to +85 °C
- Size: 105 × 65 × 17 mm, weight: 73 g
- Compliance: EN 12830, EN 13485, EN 61010-1, RoHS, RED

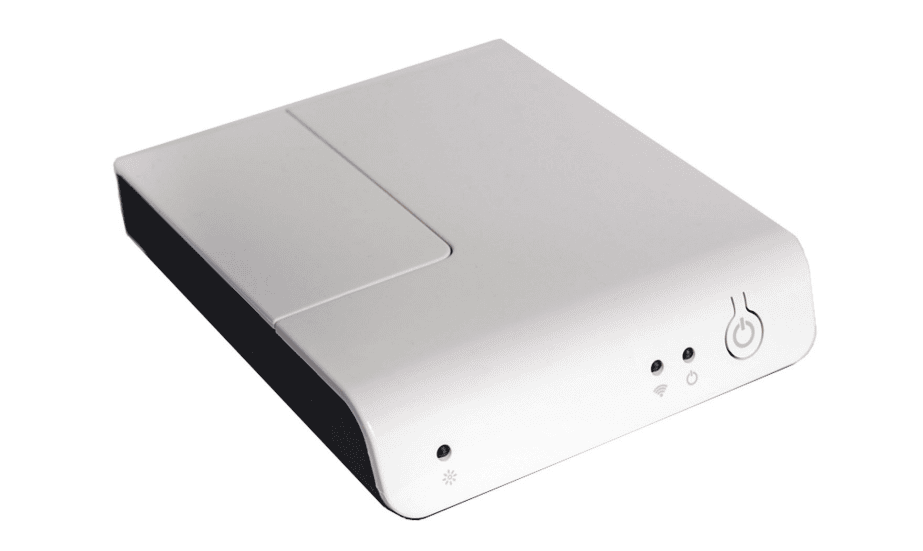

EGW – Ethernet Gateway
Fixed-installation gateway connecting Seemoto sensors to the cloud via Ethernet or WiFi for sites with existing infrastructure.
Key Features
- Ethernet and WiFi connectivity: leverages existing network infrastructure
- Reliable data collection: stable, low-latency communication for sensor networks
- Centralized data routing: collects from multiple sensor zones simultaneously
- Remote management: supports configuration and diagnostics
- Compatible with all Seemoto sensor types for scalable expansion
Commercial Use
- Warehouses, cold rooms, and laboratories with Ethernet/WiFi
- Healthcare and pharma facilities: hospitals, pharmacies, cleanrooms
- Industrial sites: production areas and controlled environments
- Multi-location monitoring with centralized data collection
Specifications
- Connectivity: Ethernet and/or WiFi
- Power: mains-powered (adapter included)
- Operating temperature: −40 °C to +85 °C
- Security: encrypted wireless communication
- Compatible with all Seemoto sensors
- Compliance: EN 12830, EN 13485, EN 61010-1, RoHS, RED
Frequently asked questions
Specification-level answers on sensor selection, accuracy, battery life, offline storage and gateway connectivity.
For ULT freezers, cryogenic storage and LN₂ tanks, use a probe-based device. The TS-PT external PT1000 probe measures down to −196 °C (probe dependent), and the TS-4PT covers −196 °C to +150 °C across up to four calibrated PT-1000 probes, so a single device can monitor several points in one unit. The snap-on TS and THS sensors cover −40 °C to +85 °C and suit cold rooms, refrigerators and standard freezers.
Accuracy depends on the model. The TS, THS and TDS measure to ±0.5 °C with 0.1 °C resolution; the TS-Logger measures to ±0.3 °C with 0.1 °C resolution; and the four-channel TS-4PT measures to ±1.0 °C with 0.5 °C resolution. The THS additionally measures humidity across 0–100 %RH to ±3 %RH.
Yes. Seemoto temperature sensors, loggers and gateways are designed and certified to EN 12830, the European standard for temperature recorders used in the transport, storage and distribution of temperature-sensitive goods. Devices also carry EN 13485, EN 61010-1, RoHS and — for gateways — RED conformity. Device certification supports your GDP, GMP and HACCP obligations, but it does not by itself make an operation compliant.
No charging is required. The TS and THS sensors run up to 5 years of continuous use, the TDS 3–5 years, and the TS-Logger 8–12 years depending on the application. The TS-4PT uses a replaceable battery with a minimum 1-year life. Gateways are mains or DC powered rather than battery powered.
Each sensor buffers readings in internal memory and syncs automatically once the connection returns, so the continuous record required for audits has no gaps. The TS, THS and TDS store up to 600,000 readings, the TS-Logger holds 13,700+ records (roughly 37 days), and the TS-4PT stores about 15 days of data when all four probes are in use.
Not necessarily. Sensors communicate with a gateway over secure encrypted 2.4 GHz wireless at ranges of 200–400 m line-of-sight, and the gateway forwards data to the Seemoto Cloud. The WGW and DGW gateways use their own GSM/SIM connection and operate independently of customer IT, which suits sites where network access is restricted. The EGW instead uses existing Ethernet or WiFi infrastructure.
Choose the WGW warehouse gateway for fixed sites needing independent GSM connectivity without customer IT involvement. Choose the DGW display gateway when on-site staff need live values visible locally, or for vehicle and fleet use — it accepts 5–31 V DC as well as mains power. Choose the EGW ethernet gateway where Ethernet or WiFi already exists. All three are compatible with the full Seemoto sensor range.
